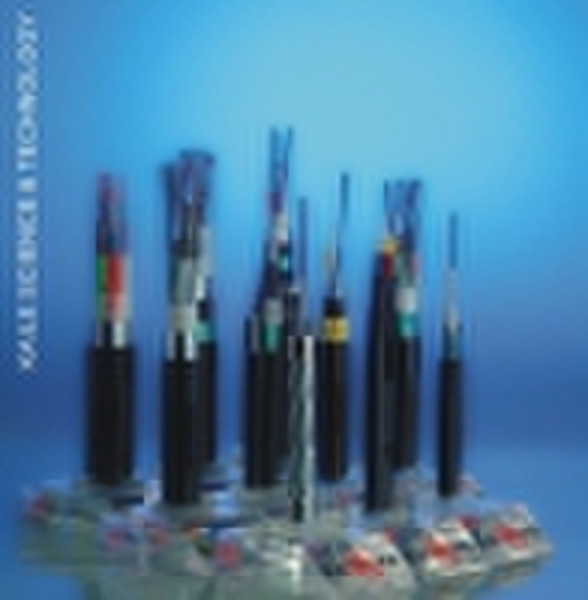

GYXTS Optical Cable

Category: Central tube fiber Product introduction: Fully filled central tube outdoor optical cables for communication purpose with metal-reinforced components as well as steel (aluminum) and polythene sheath (with armored installation by thin steel wires). Product property: Minimized transmission attenuation and dispersion with rational design and accurate control of excessive length of the optical cable inside the loose tube so as to guarantee superior mechanical and environmental performance. Between loose tube and reinforced components are filled with water-resistant ointments and between reinforced components and sheaths are coiled with water-resistant materials with tight connection of the two to ensure a full cross-sectional water-resistant ability of optical cables. Lapped seams of steel bands are adhered together by using special techniques with plastically coated steel bands being tightly connected to PE sheaths to ensure radial anti-dampness with enhances capability to mechanical pressure resistance, therefore prolonging the service life of optical cables. Scope of application: Application to core networks, MANs as well as access networks. Laying mode: aerial and duct Technical features Central tube model: Armoured steel band structure, excellent mechanical and environmental performance.Rational design and accurate control of excessive length of the optical cable inside the loose tube so as to guarantee superior mechanical and environmental performance. Small outer diameter, high intensity, good counter side pressure resistant capability.Bullet-proof and rodent-proof performanceProduct specification and technical parameters: Total number of fiber cores2-12Max external diameter of optical cable (mm)11.2Cable Max unit weight (kg/km)181Allowable pull force (N)long-term600short-term1500Allowable crush strength (N/100mm)long-term300short-term1000Min bending radius (mm)static10 times of cable external diameterdynamic20 times of cable external diameterApplication of temperature-40+70
